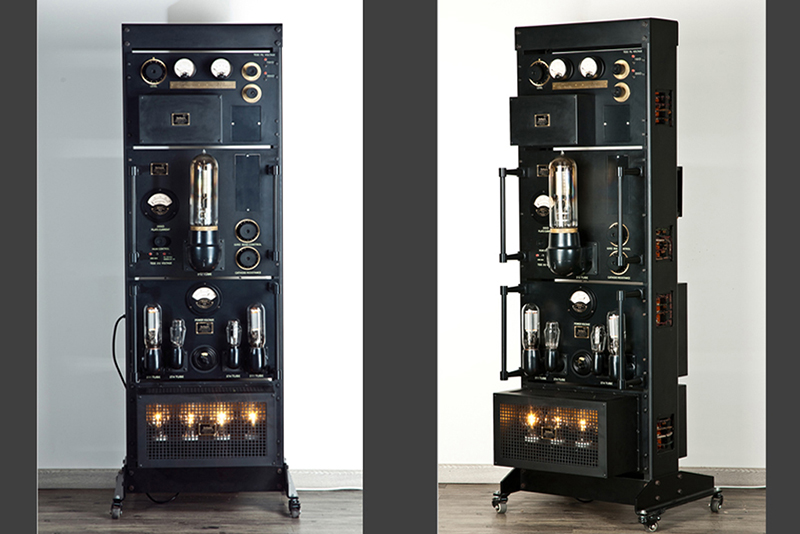

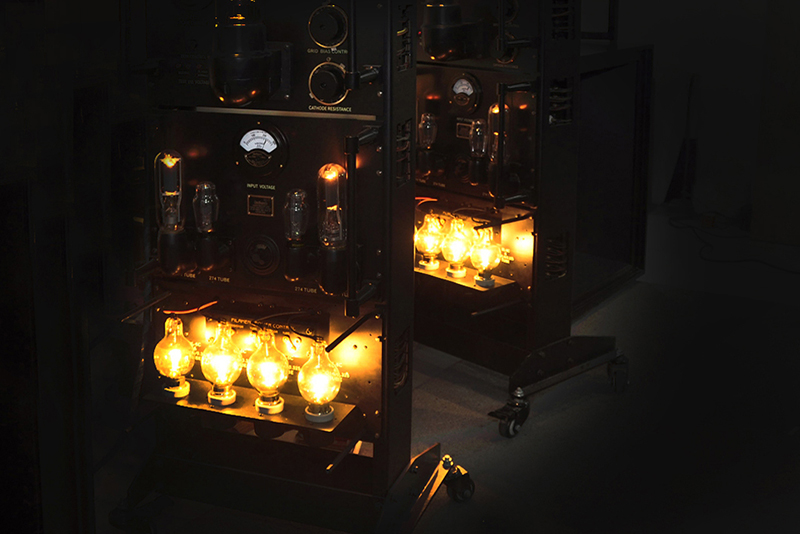

LM-212 is designed with full straight vacuum tubes, tube as rectifier and WE series iron core of audio transformer made by LM itself.Especially, it has two outputs at the same time due to the spare tubes 300B.
Specification:
Power output:212-20W (211 18W)(300B 6W)(RMS)
Frequency response:10Hz~20kHz(1W)
Input Impedance:100kΩ
Output impedance: 4Ω,8Ω,16Ω,600Ω
Tube Complement: 205D×2 / 102D×2 / 211×6 /5U4×4 /313×2 /300B
×4 / 6X5×2 / 6J7×2 /EL-6C×8 /300B×2 (buy by customers)
Dimension (WxHxD): 1740mmx520mmx570mm
Net weight: 204kg
The WE124 is one of the famous amplifiers in the later period of WE. With rich experience of maintenance and adjustment to WE' products and in conformity with practicality and requirements of modern audio system like electrical perfomance and output impedance etc., LM had duplicated the new one LM-124A successfully.
设计完善,电路合理,为保障功放管声音纯真,高压也选用805做整流,纯铁的推动变压器,坡莫合金制作的信号扼流圈等均为本机设计
All materials such as transfomers,capacitors and tube sockets etc., and manufacturing process are same as WE41.42 except for the size of it. The whole machine is divided by two parts:
