Product Introduction

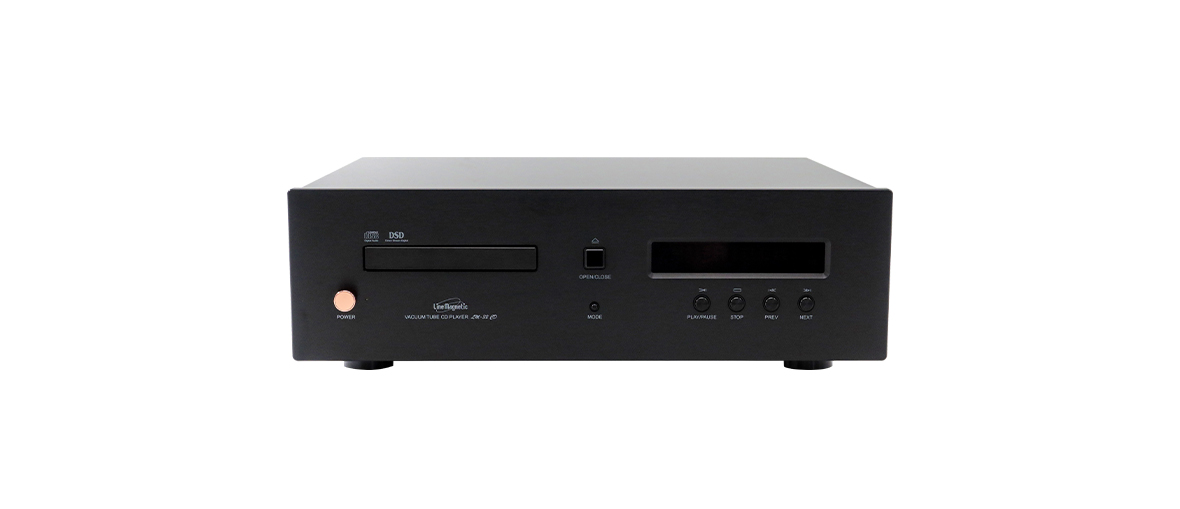

LM-32CD is a high-end audio player integrating premium CD playback and high-resolution decoding. Built with an original SANYO drive system for stable, smooth disc reading, it features a flagship ESS 9036 DAC chip paired with XMOS asynchronous USB technology, supporting 32bit/192kHz high-resolution audio decoding with one-touch switching between CD and USB playback.

Employing a dual-transformer isolated power architecture for digital and analog circuits respectively, it combines porcelain-encapsulated high-grade op-amps with a dual 6KZ8 tube output stage, delivering precise resolution alongside warm tube tonality. It offers balanced and unbalanced analog outputs plus four digital outputs for versatile system matching, with a high-clarity VFD display and dual control via front panel or remote for effortless daily operation.

- LM-32CD is a CD player with SANYO driver system,can give a stable performance of the CD player.

- LM-32CD has asynchronous USB playback function. It takes Xmos USB audio technology which utilizes high speed USB 2.0 receiving and decoding 32 bit/192kHz high resolution digital signals.

- VFD display.

- Two excellent power transformers are used for the power supply of the CD player.Digital circuit has used Toroid power transformer and Analog circuit has used EI type of power transformer. Solid state circuitry is using porcelain capsulated high grade opamp and the tube output circuitry has used two pieces of 6KZ8.

- LM-32CD is designed with top grade ESS 9036 DAC chips and you can switch between CD playback and USB playback by the button USB/CD on the remote or on front panel.

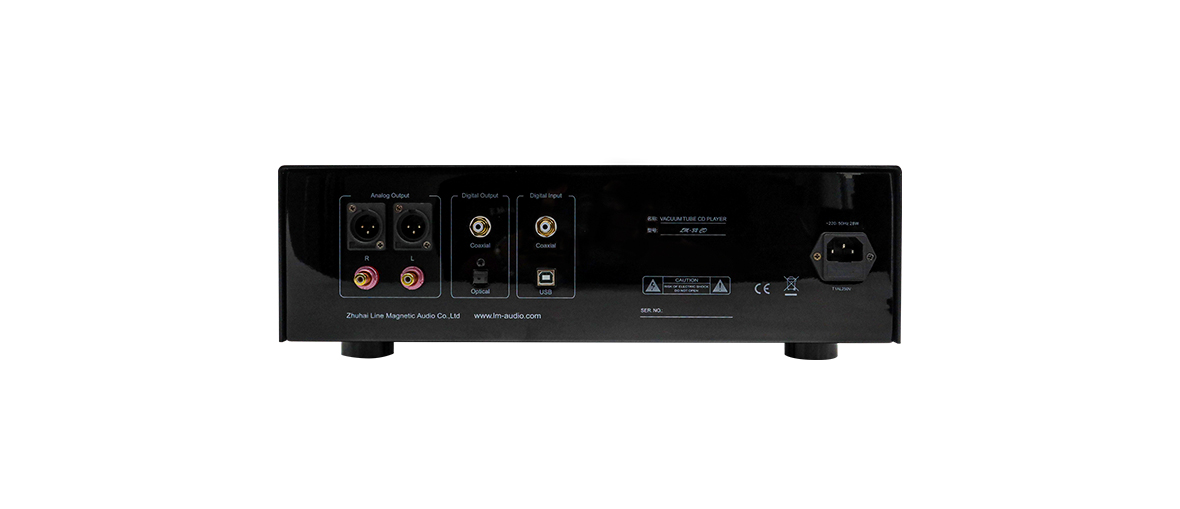

- LM-32CD offers a choice of outputs between Balance and unbalanced output. It also features four digital outputs: Coaxial, Optical, RCA, and Balance output.

Specification

Tube Complement: 6KZ8*2

Power Requirement: ~115V/230V/±5% (50Hz/60Hz)

Frequency response: 20Hz~20kHz (±0.5dB)

Read Time: 5 Seconds                                                              S/N Ratio: 105dB

Output Level: Unbalanced 3V, Balance 2V                                Power Consumption: 28W

Coaxial/Optical Output: Compatible with S/PDIF standard        THD: 0.0025%                                Dimension (W×D×H): (430 x 335 x 145) mm                             Net Weight: 12kg
