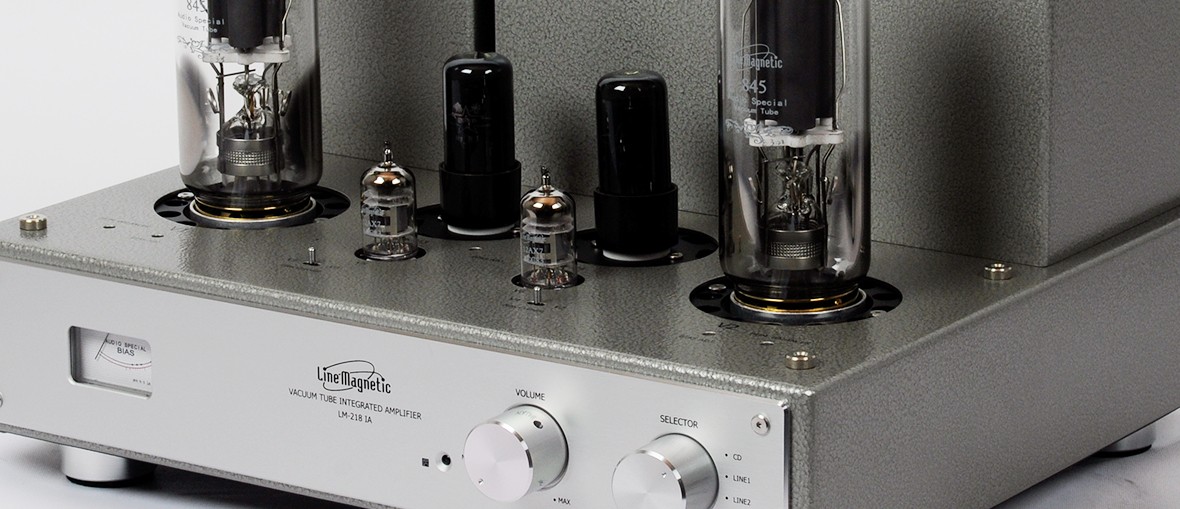

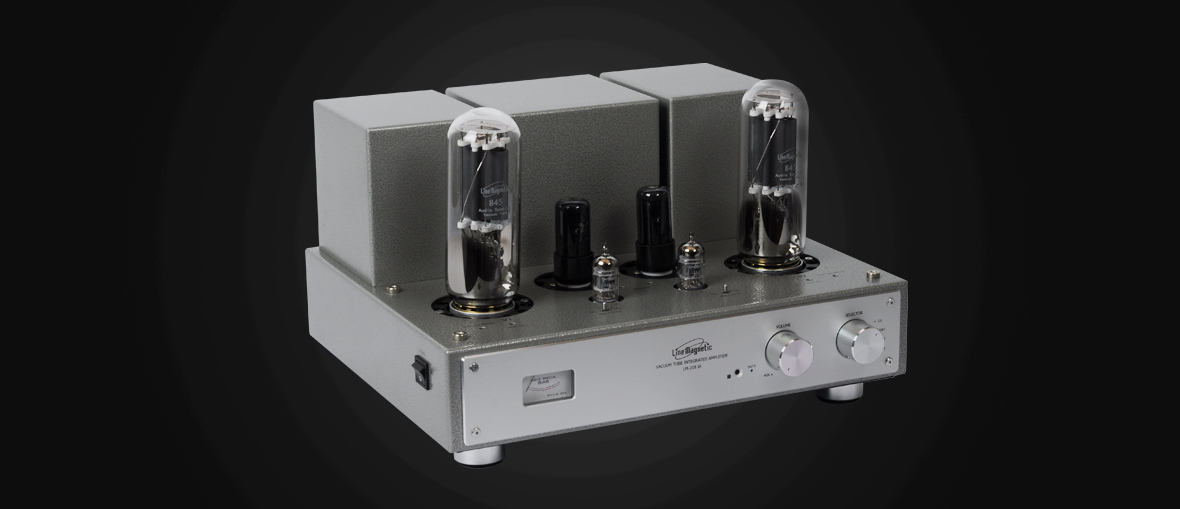

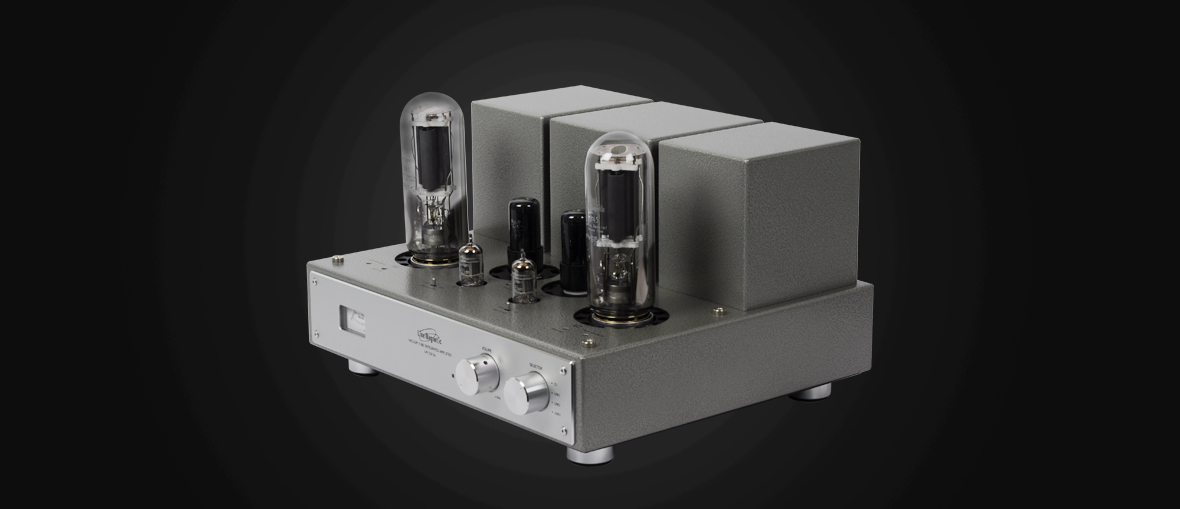

LM-218IA Integrated Amplifier

Product features:
●Twenty-two watts per channel, Single Ended Triode design, Pure Class A Integrated
Stereo Amplifier with 845 output power tubes.
●All triode tube Integrated with 12AX7 input tubes for voltage amplification, 6L6 driver
tubes and 845 output tubes. Driver tubes 6L6 can also be replaced by EL34, KT88, 6550,
 or 6V6 and you can select which tubes you prefer judging by different sounds.

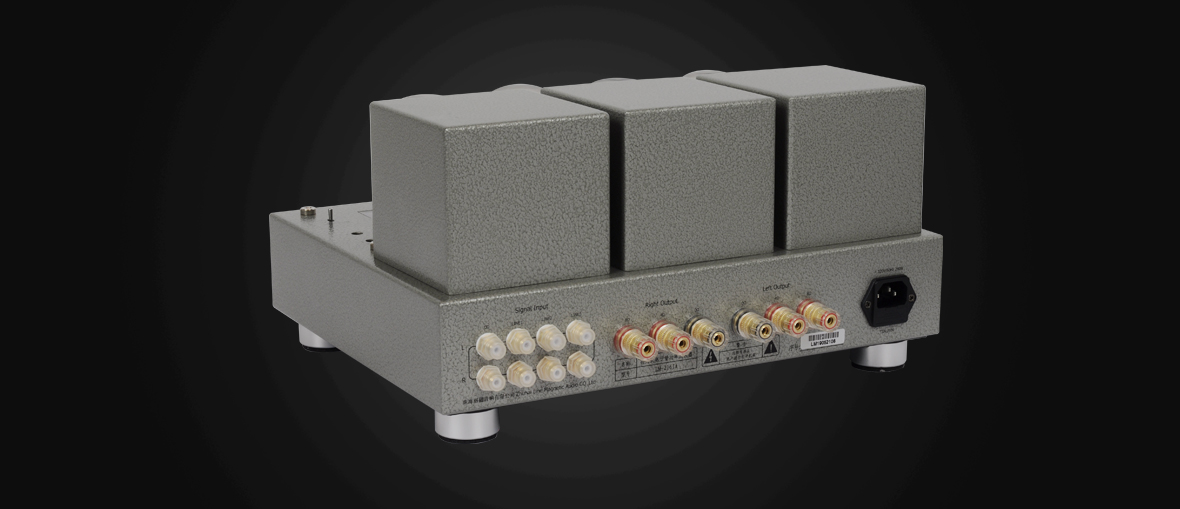

●4 pairs of inputs and speaker terminals for 4, 8 and 16 ohm speakers are located on the
 back panel.
●User bias control has been used for bias adjustment and one meter has been added to
the front plate to allow you to monitor bias with ease.
●Specially designed toroid transformers for power supply and two EI output transformers
with wide bandwidth are applied.
●Japanese Audio grade ALPS volume potentiometer has been applied.
●Standard with remote control.
●Hand made construction with the finest point-to-point wiring.
●SoftStart and time-delay circuit. (30 seconds).



Specification:
-Power output:22W+22W
-Frequency response:10Hz~50kHz(-1.5dB)
-THD:1%(1kHz)
-S/N Ratio:87dB
-Input Sensitivity:210mV
-Input Impedance:100kΩ
-Output Impedance:4Ω ,8Ω,16Ω
-Dimension (WxDxH): (380 x 400 x 275)mm3
-Tube Complement:12AX7 x2、6L6EHx2、211x2
-Net weight: 35.2kg
-Power Consumption:320W
-Working Condition: Temperature: 0℃~40℃ Moisture: 20%~80%
-Storage Condition: Temperature: -20℃~70℃ Moisture: 20%~90%
