Product Features:
An adjustable excitation power supply system with vacuum tube recitifier is disigned for low voltage but big current' units;
Use WE4144 as main circuit and some WE materials;

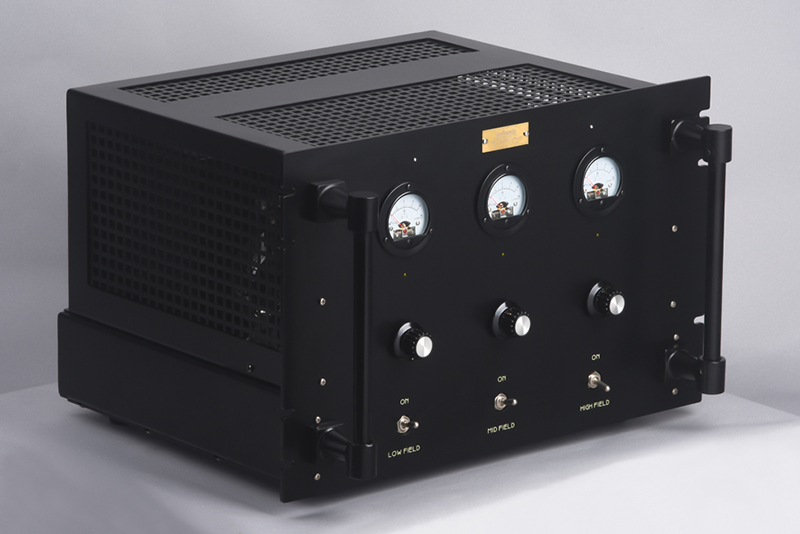

Pointer indication of output current adjustment
Specification:
Power Output:220V~240V/AC 50Hz~60Hz; 100V~120V/AC 50Hz~60Hz
Power Output:3 selections
LOW. DC 10-24V / 0.5~2A
MID. DC 3-10V / 0.5~2A
HIGH. DC 3-10V / 0.5~2A.
Dimension:485X320X450
Weight:39Kg
Vacuum Tubes:EL-6C(interchangeable) or(EQ1-6/0.325)× 4/pcs
It can apply into excitation power.

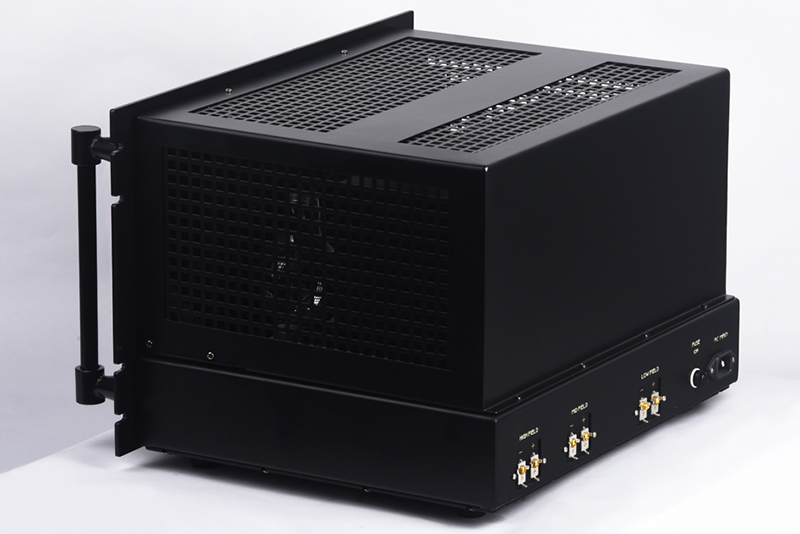

HIGH/MID Terminals:
597X2(597x1) / 555X1/LM-755exX1 / 594X1 / RCA-1428X1
LOW Terminals:
555X2 / 594X/TA-4181X2
Power supply system with vacuum tube rectifier is designed for low voltage but big current's units;
It is specially designed for high voltage excitation speakers;
Specially designed for low voltage field coil speakers;
