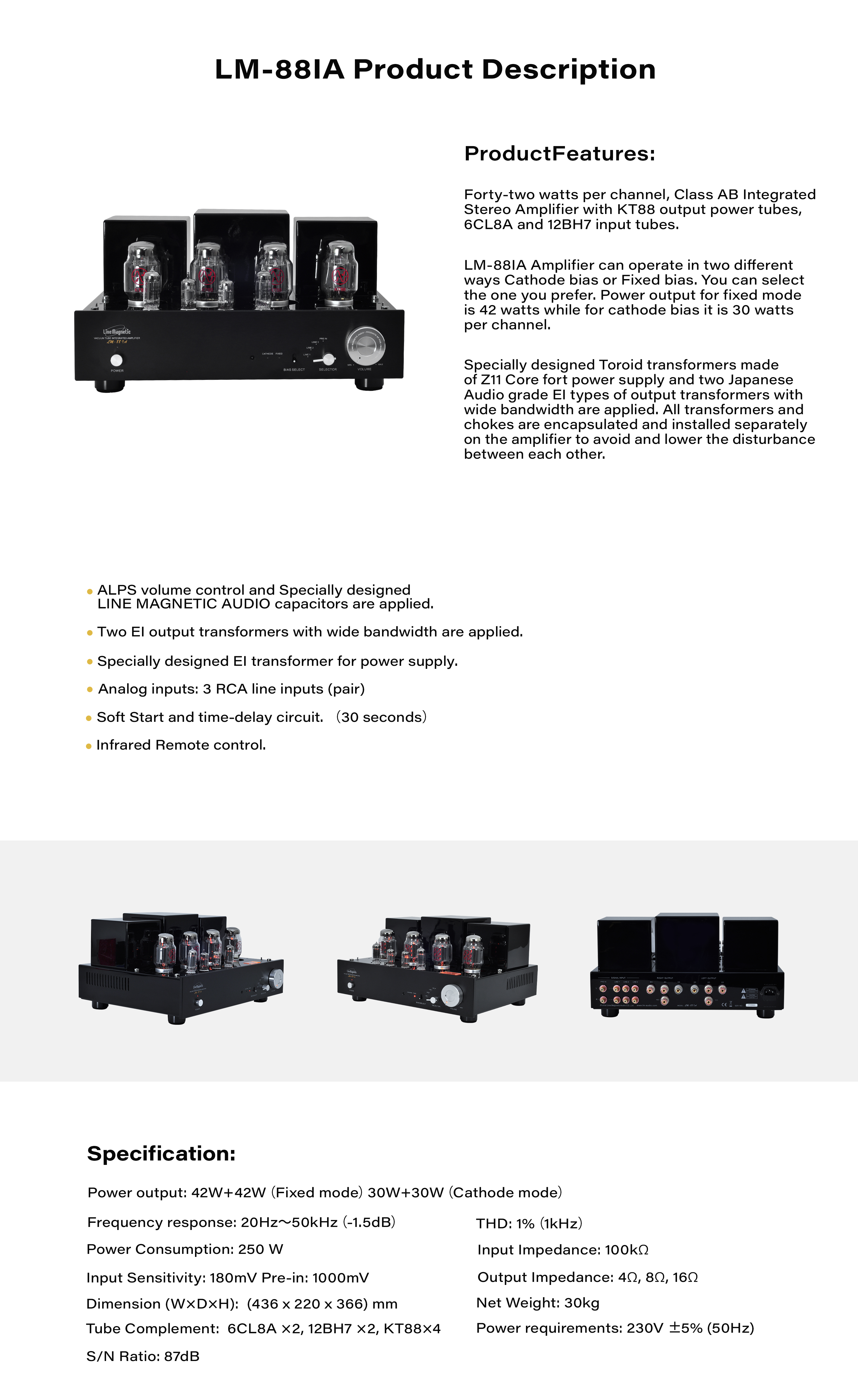

Product Introduction

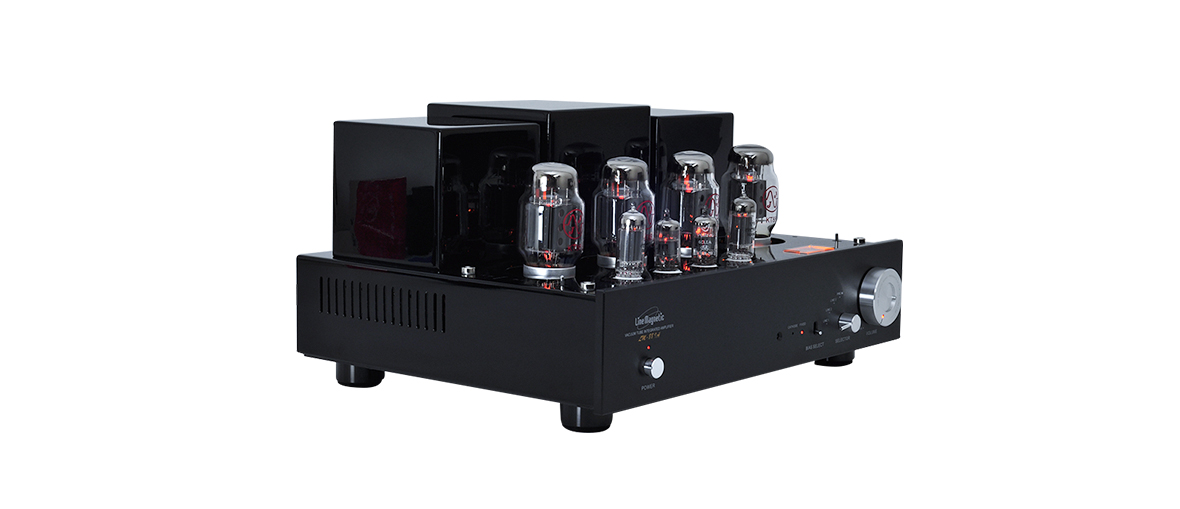

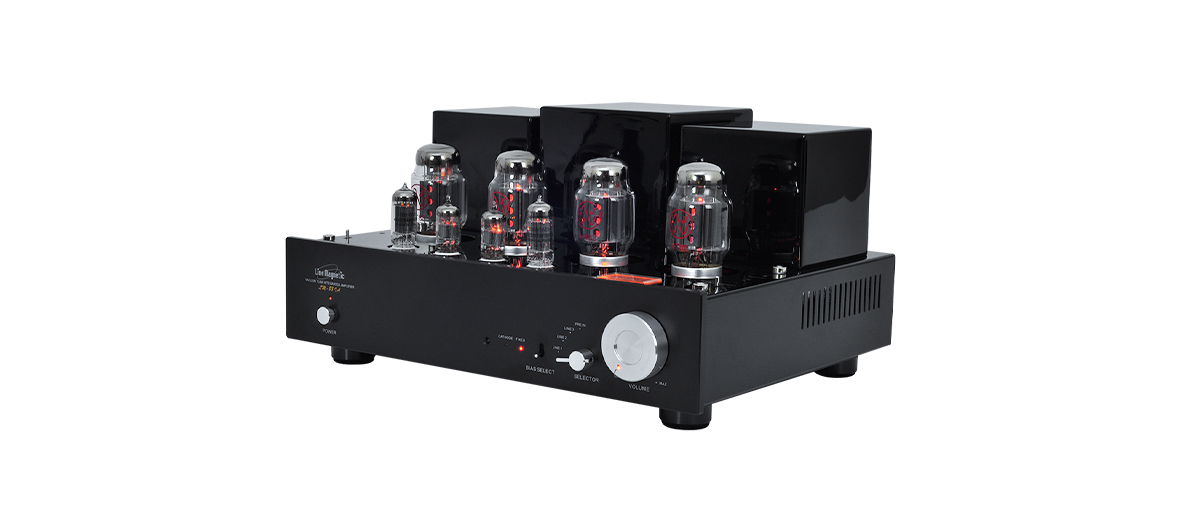

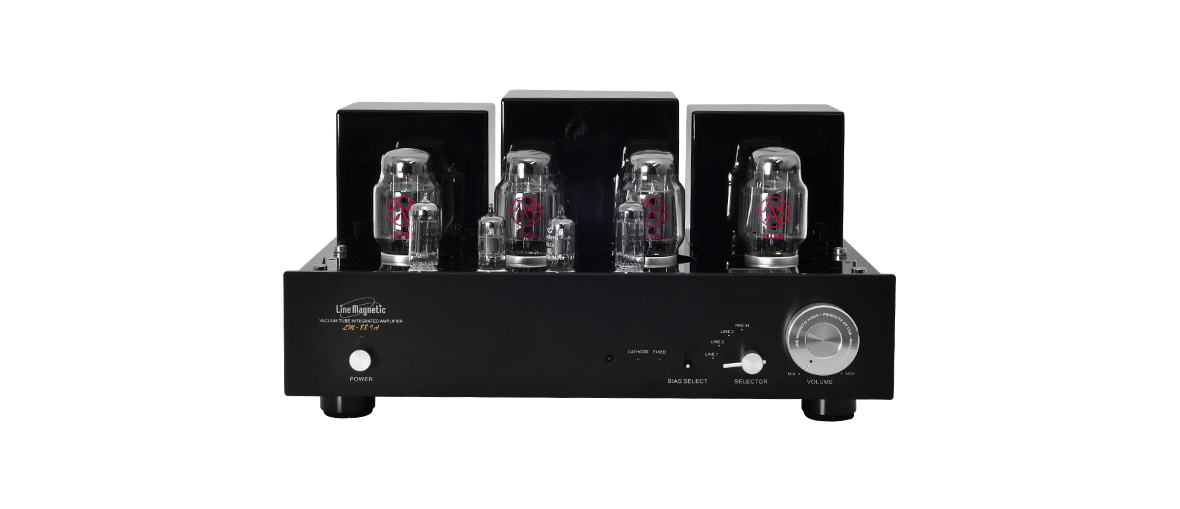

Forty-two watts per channel, Class AB Integrated Stereo Amplifier with KT88 output power tubes, 6CL8A and 12BH7 input tubes.

LM-88IA Amplifier can operate in two different ways Cathode bias or Fixed bias. You can select the one you prefer. Power output for fixed mode is 42 watts while

for cathode bias it is 30 watts per channel.

Specially designed Toroid transformers made of Z11 Core fort power supply and two Japanese Audio grade EI types of output transformers with wide bandwidth

are applied. All transformers and chokes are encapsulated and installed separately on the amplifier to avoid and lower the disturbance between each other.

- ALPS volume control and Specially designed LINE MAGNETIC AUDIO capacitors are applied.

- Specially designed EI transformer for power supply.

- Two EI output transformers with wide bandwidth are applied.

- Analog inputs: 3 RCA line inputs (pair)

- Soft Start and time-delay circuit. （30 seconds）

- Infrared Remote control.

- Metal and removable tube guard cage.

Specification

Tube Complement: 6CL8A*2, 12BH7*2, KT88*4

Power output: 42W+42W  30W+30W(Cathode) (Class AB Push-pull)

Frequency response: 20Hz~50kHz (-1dB)

Input Sensitivity: Line: 180mV Pre in: 1000mV                       S/N Ratio: 87dB

Output Impedance: 4Ω, 8Ω, 16Ω                                             Input Impedance: 100kΩ

THD: 1% (1kHz)                                                                      Power Consumption: 250W

Dimension (W×D×H): (436 x220 x 366) mm                           Net Weight: 30kg
