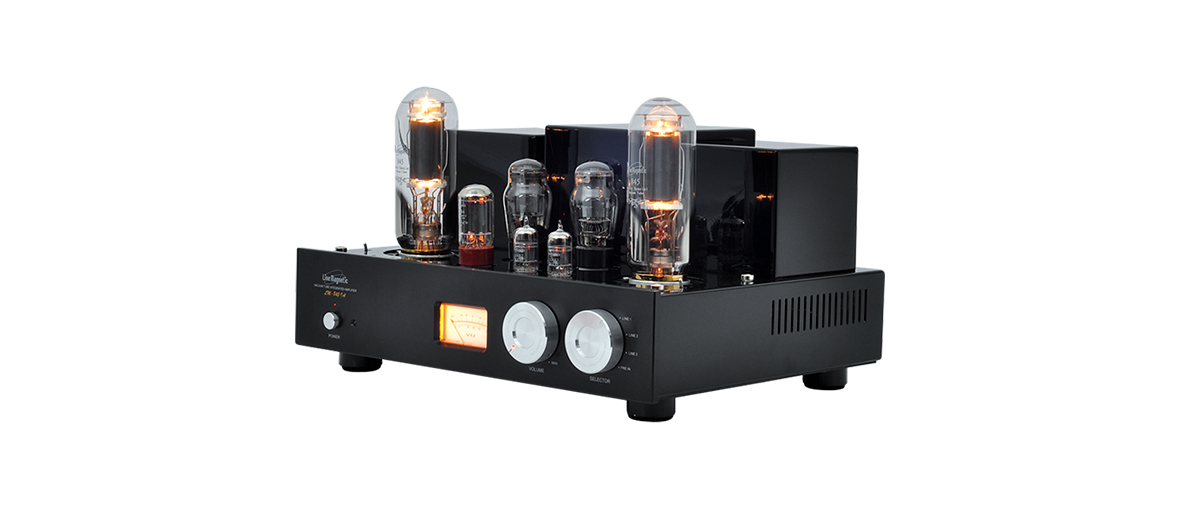

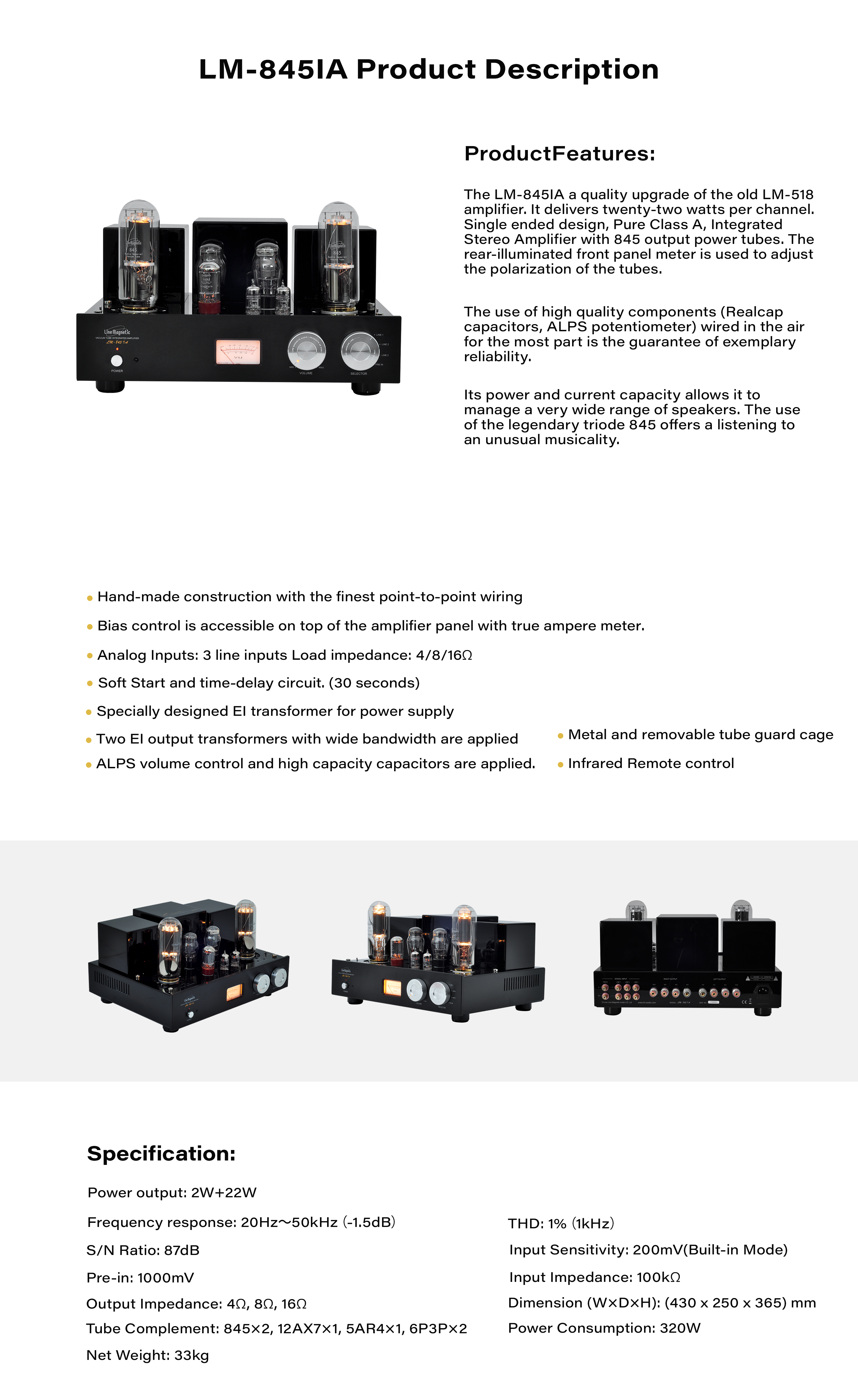

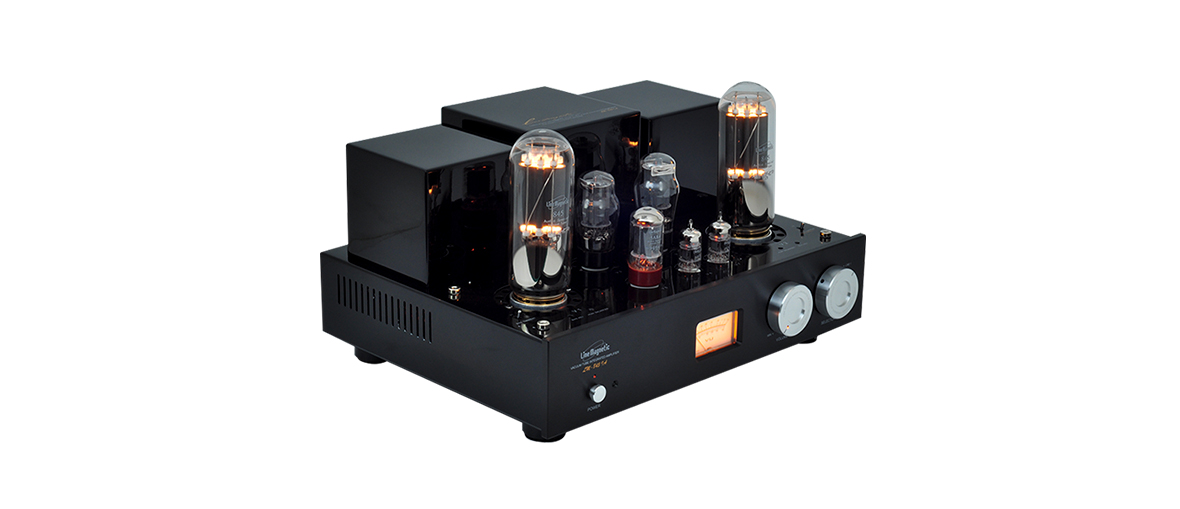

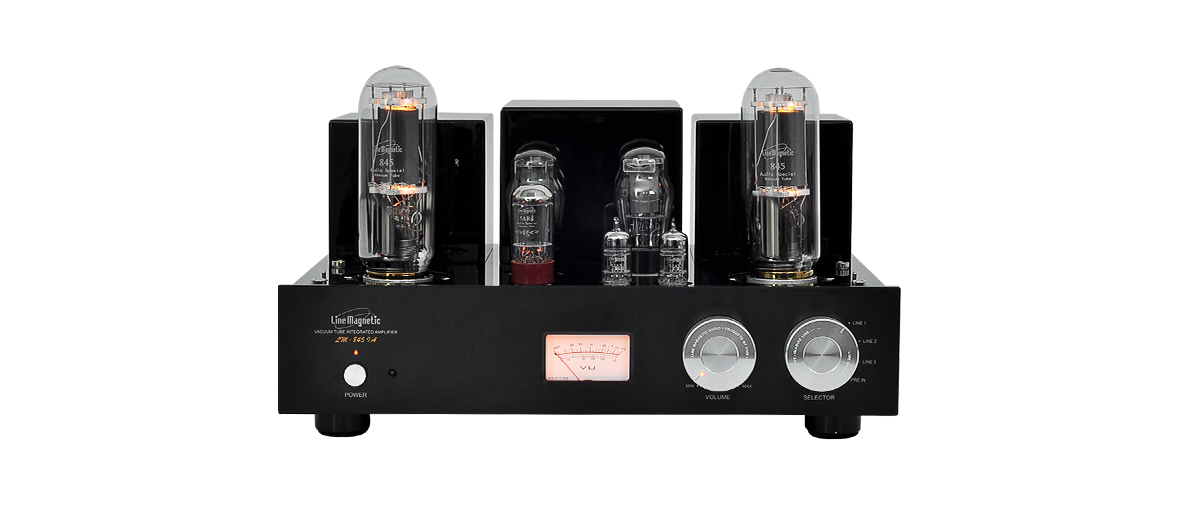

Product Introduction

The LM-845IA a quality upgrade of the old LM-518 amplifier. It delivers twenty-two watts per channel. Single ended design, Pure Class A, Integrated Stereo

Amplifier with 845 output power tubes. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.

The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability.

Its power and current capacity allows it to manage a very wide range of speakers. The use of the legendary triode 845 offers a listening to an unusual musicality.

- Bias control is accessible on top of the amplifier panel with true ampere meter.

- Hand-made construction with the finest point-to-point wiring.

- Analog Inputs: 3 line inputs Load impedance: 4/8/16Ω

- Soft Start and time-delay circuit. (30 seconds)

- Specially designed EI transformer for power supply.

- Two EI output transformers with wide bandwidth are applied.

- ALPS volume control and high capacity capacitors are applied

- Metal and removable tube guard cage.

- Infrared Remote control.

Specification

Tube Complement: 845*2, 6P3P*2, 12AX7*2, 5AR4*1           Power output: 22W+22W (Class A Single Ended)

Frequency response: 20Hz~50kHz (-1.5dB)                           S/N Ratio: 87dB

Input Sensitivity: Line: 300mV Pre in: 1000mV                       Input Impedance: 100kΩ

Output Impedance: 4Ω, 8Ω,16Ω                                              Power Consumption: 320W

THD: 1% (1kHz)                                                                      Net Weight: 33kg

Dimension (W×D×H): (430 x365 x 255) mm
