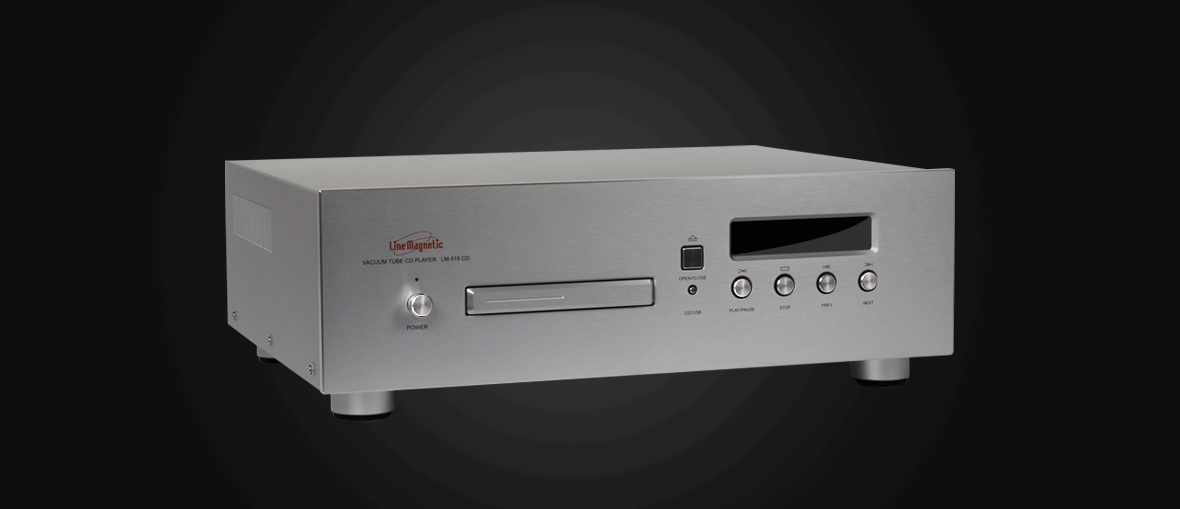

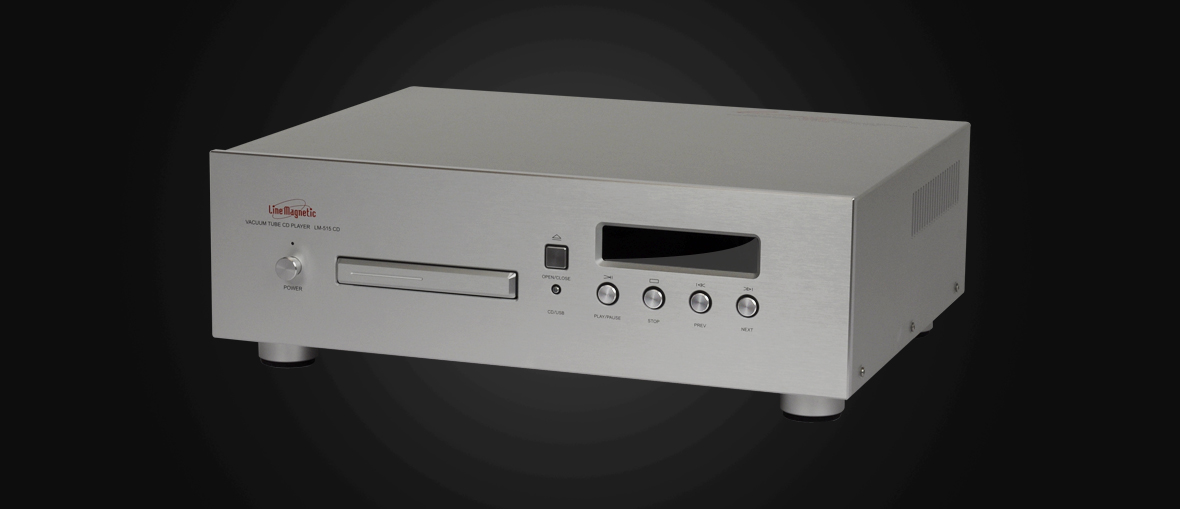

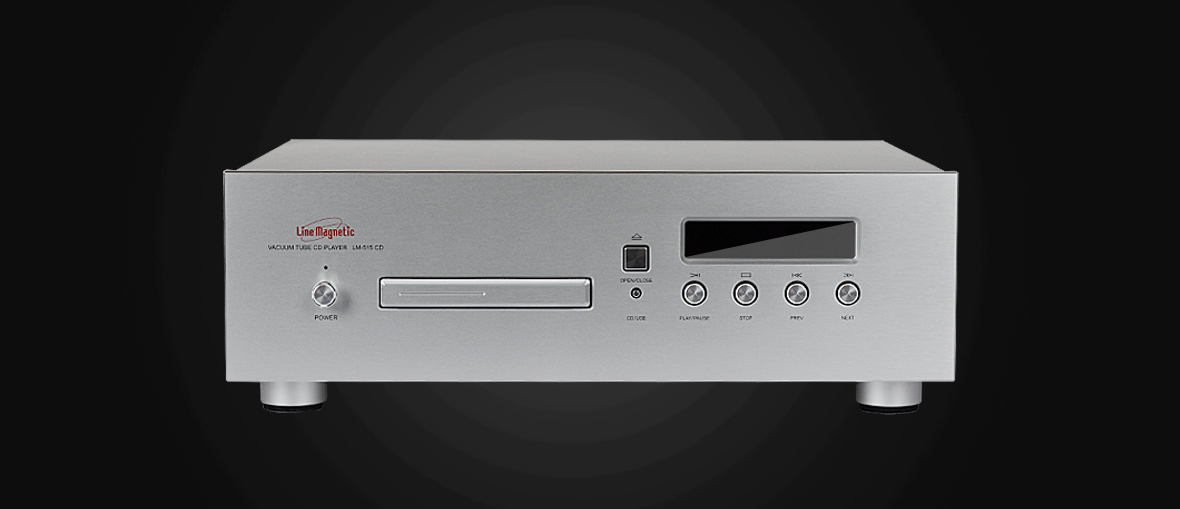

LM-515CD CD Player

Product features
●This product is a CD disc player and a PC-USB decoding dual-purpose machine
●The machine used for exclusive design of O type transformer and transformer type
EI respectively for digital and analog circuit with independent power supply
●Using advanced Sony iron rack movement
●The use of American decoding chip ESS company‘s top chip ES9016
●The use of I/V conversion ceramic package 5532
●The output using the two 6KZ8 electron tube
Infrared remote control function
●OLED display shows the correlation function of job information
●One PC-USB input function can support the maximum sampling rate of
192KHz lossless audio

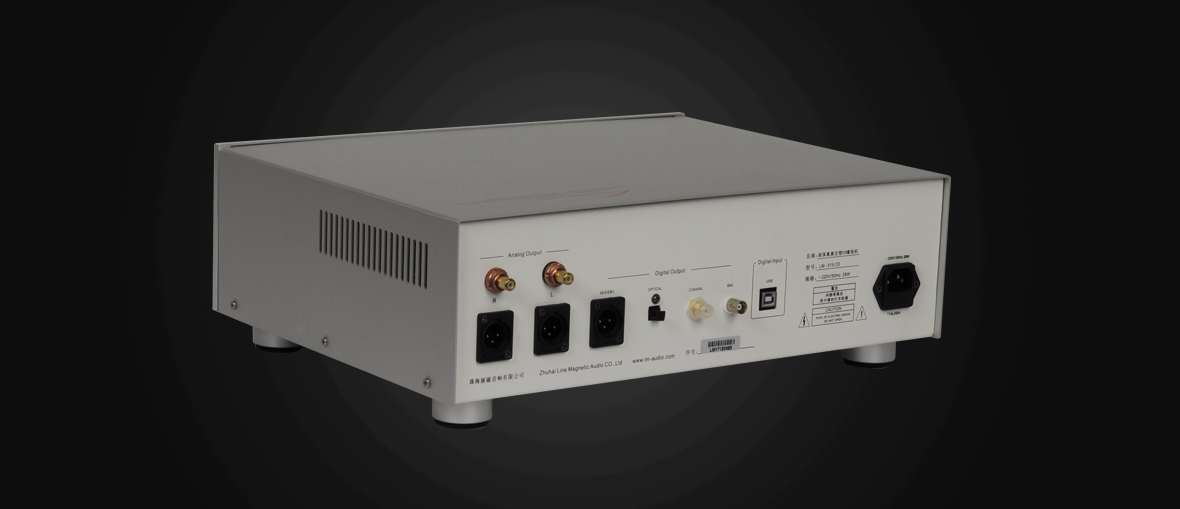

●A group of simulated RCA and full balanced signal output interface, digital RCA
coaxial, BNC, optical fiber, coaxialbalanced signal output interface

Specification:
-System:Tube Compact Disc Player
-THD:0.0025%
-Frequency response:20Hz-20KHz,+3dB
-S/N Ratio:110dB(A Weighted)
-Dynamic Range:120dB(A Weighted)
-Output levels:Unbalanced 3V, Balance 2V
-Read time:5S
-Dimension (WxDxH):430mm x 325mm x105mm
-Net weight:10kg
-Power Consumption r:28w
-Coaxial/Optical Output: Compatible with S/PDIF standard.
-Working conditions:temperature 5 ℃~ 35 ℃ Moisture: 9% ~ 90% (not dew)
